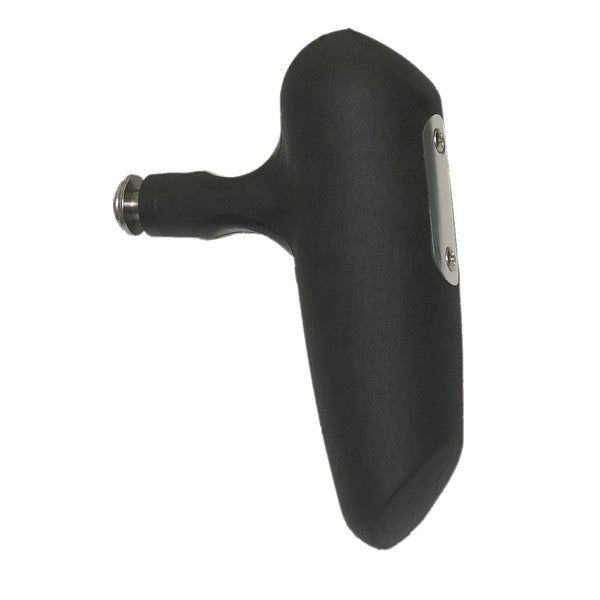

Handle w/ Round or T-Bar Knob with 2 Bearings PENN SQUALL 25N 30 40 15LW 20LW 30LW 50LW Reels
|
This Handle Blank & Knob Fits the Following PENN Reels:
SQUALL
SQL25N, SQL30, SQL40, SQL15LW SQL20LW, SQL30LW, SQL50LW FATHOM Star Drag Reels FTHSD12 (FTH12), FTHSD15 (FTH15), FTHSD25N (FTH25N), FTHSD40 (FTH40) FTH15LW, FTH20LW, FTH20LW-LH, FTH25LW, FTH25LW-LH, FTH40LW, FTH60LW Proper Installation Requires the Use of Loctite BLUE 242. Attaching the Knob to the Handle Blank:
Note: The bottom screw is LEFT Handed!
To attach the knob to the handle blank, you must remove the bottom screw and small washer from the internal shaft.
Place a small amount of Loctite Blue 242 into the opening of the internal shaft and on the threads of the bottom screw. Let the Locite set for about an hour.
Attach the screw together with the small washer thru the handle blank hole into the shaft. In the event the knob rotation is either too loose or too tight, you may adjust the tension on the knob rotation by removing the top cap and adjusting the screw in the knob cavity. If Needed, Additional Installation Notes Are Available Upon Request Sales Tax: CA Residents Pay Sales Tax.
|
