Deluxe T-Bar Handle (Black) fits PENN 25GLS, 40GLS, 45GLS Lever Drag Reels

Now Incorporates a Patented 18 Degree Off-Set Knob.

This permits the optimal alignment of your wrist, forearm, elbow and shoulder, resulting in maximum power and minimum fatique.

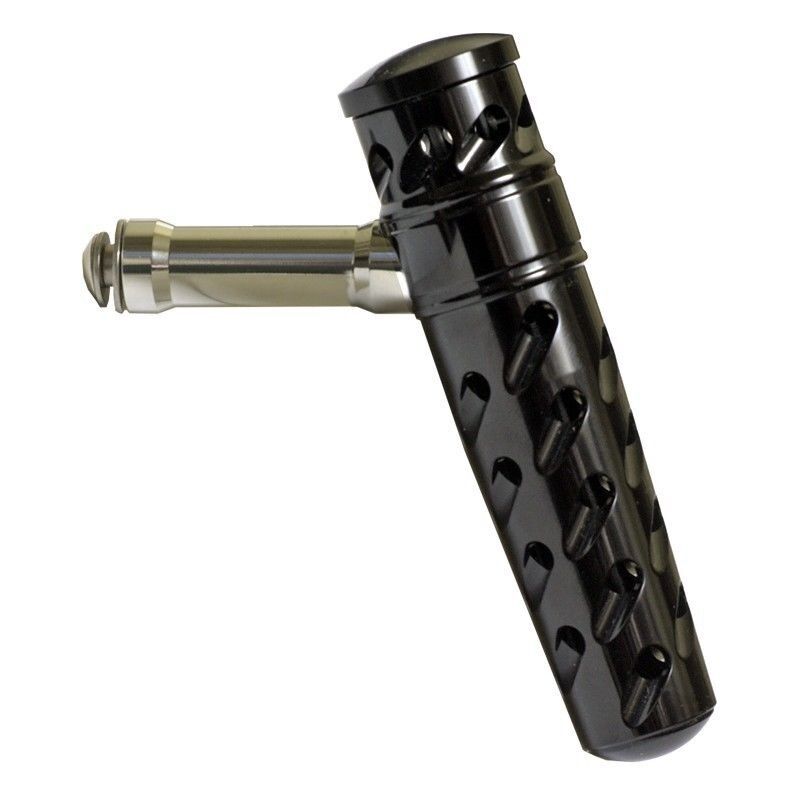

You are bidding on a new T-Bar Power Handle.  The complete handle includes an aluminum handle blank and knob and weighs about 3 oz. The knob is constructed of 6061 Aluminum and incorporates a ball bearing in the shaft.  This hollow aluminum knob is extremely light weight and incredibly comfortable.   It is about 4" long and about 1" in diamedter.  The 6061 aluminum handle blank is about 3.75" in length.  This is longer than the original handle blank.  This extra length provides for additional torque.   Handle blank and knob are both BLACK.

Unscrew the cap from the top of the knob. The shaft is detached from the knob by removing the small allen screw from inside the knob.  Then separate the knob from the shaft.  Remove the small plug from the top of the shaft.  This will expose a slot in the pin for the second screw driver.  Attach the shaft to the handle blank using 2 screw drivers.  Then reverse the procedure to reassemble.  You should use blue Loctite 242 when attaching the knob shaft to the handle blank to secure the screw.

Mounting Screws May Be LEFT HANDED!

If Needed, Installation Notes Available Upon Request.
